Response DB1

Small appearance with large stage presence. Meet the Response DB1

With the DB1, ProAc has achieved in a small speaker, a sound normally associated with a larger speaker, particularly the bass response.

The DB1 cabinet is made from different thicknesses of high density MDF and further damped by bitumen to control cabinet resonance. A newly designed long throw bass driver was used and ported at the rear. The cone is made from pulp and mica which is then elastic coated and fitted with our ProAc acrylic pole damping phase plug.

The crossover was designed to give a flatter response at high levels and the tweeter is the ProAc 1-inch silk dome similar to that used in other ProAc Response models.

The midrange and high frequencies of the DB1 are superb and in the ProAc tradition, low in colouration and high in detail. The bass driver gives a wonderful bass quality, punchy and extended, similar to that which is experienced in a larger enclosure. The resulting sound stage is also comparable to that of a larger speaker.

Small mini monitor type loudspeakers, such as the DB1 have become very popular for those wishing for a high-quality sound with a minimal visual impact.



Featured veneer: Rosewood

Specification

Nominal Impedance

8 ohms

Recommended Amplifiers

20 to 100 watts

Frequency Response

35Hz-30kHz

Sensitivity

87.5 dB linear for 1 watt at 1 metre

Bass /midrange

ProAc 127mm (5”) long throw unit with Pagina Mica cone and acrylic phase plug.

Tweeter

ProAc 25mm (1”) silk dome with special coolant

Crossover

Finest components on dedicated circuit board. Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification

Height (Cabinet)

12.5”(320mm)

Width (Cabinet)

7.28” (182mm)

Depth (Cabinet)

10.4” (280mm)

Weight

each 8.8Kg (19.6lb)

Mode

Stand mounting

Grille

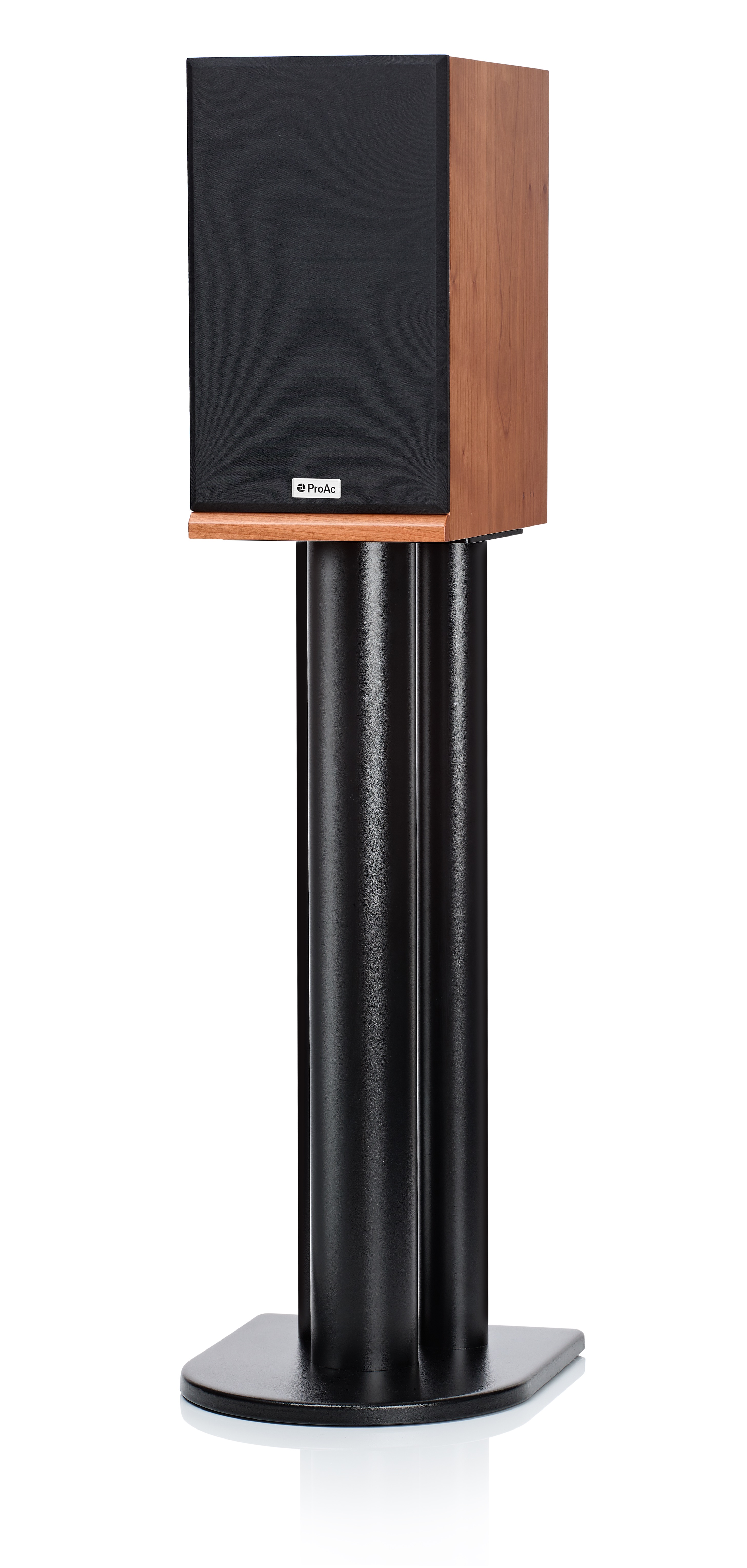

Acoustically transparent crimplene

Standard Finishes

Black Ash, Mahogany, Cherry, Walnut, Oak, Silk White.

Premium Finishes

Rosewood, Ebony. *Premium Finishes to order at extra cost*

Related Products

The ProAc Response D30S is available with either a dome or ribbon tweeter, known as the D30DS and D30RS respectively.

"The most important part of a loudspeaker design is the designer's ear. It doesn't matter how perfect the recipe is, if the stew doesn't taste right then it's no good."

Stewart Tyler
